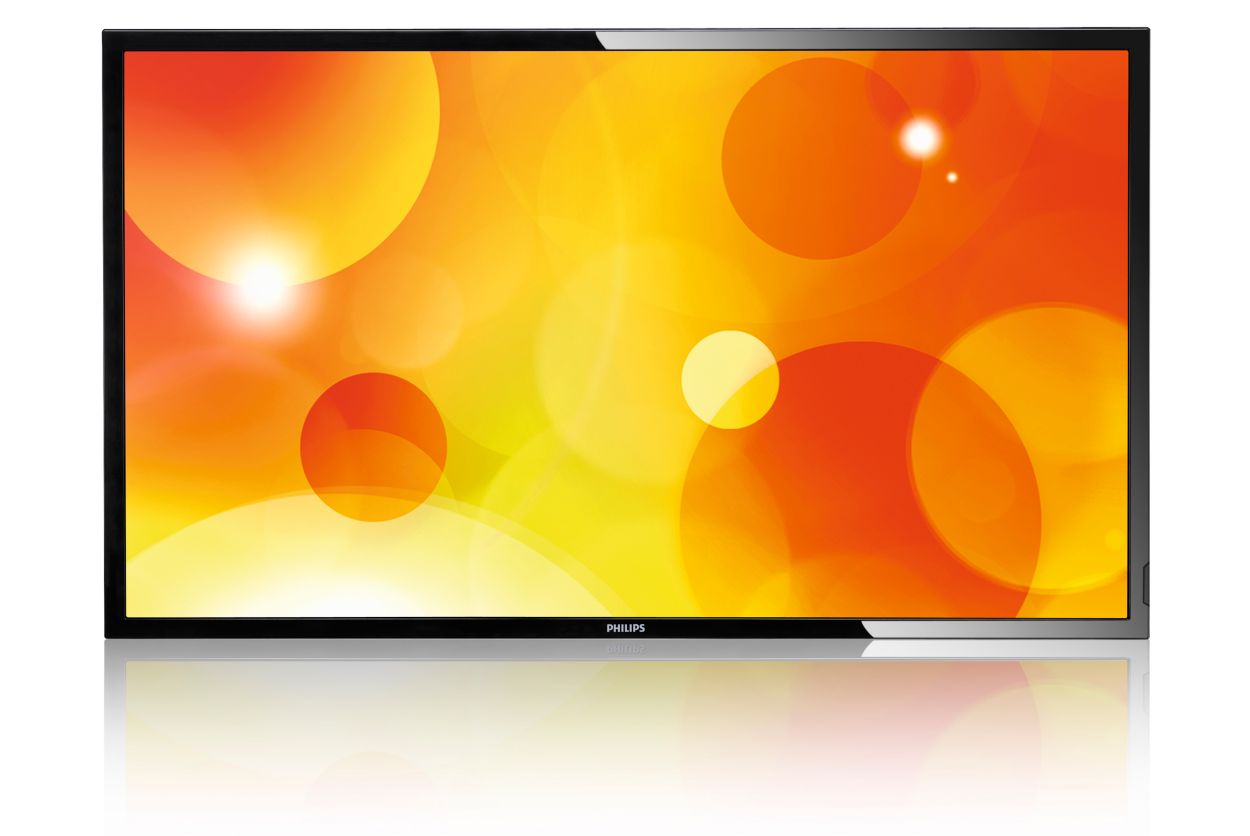

Signage Solutions Q-Line Display

BDL4830QL/00

Stand out

Inform and enthral with a Philips Q-Line professional Full HD display. This reliable solution can be up and running as quickly as you need-with no additional hardware.

See all benefits

Unfortunately this product is no longer available

Signage Solutions Q-Line Display

Similar products

See all LED

Stand out

Easy-setup 16/7 display.

  • 48"
  • Direct LED Backlight
  • Full HD
Operate, monitor and maintain with CMND & Control

Operate, monitor and maintain with CMND & Control

Run your display network over a local (LAN) connection. CMND & Control allows you to perform vital functions like controlling inputs and monitoring display status. Whether you're in charge of one screen or 100.

CMND & Create. Develop and launch your own content

CMND & Create. Develop and launch your own content

Take control of your content with CMND & Create. A drag-and-drop interface makes it simple to publish your own content-whether it's a daily specials board or branded corporate information. Preloaded templates and integrated widgets ensure your stills, text, and video will be up and running in no time.

Remote system management through CMND

Take control of your Philips Professional Display network. CMND lets you manage, update, maintain, and play via one easy-to-use interface. From installation to daily operation.

Integrated media player. Easily schedule USB content

Easily schedule content to play from USB. Your Philips Professional Display will wake from standby to play the content you want, and then return to standby once playback is done.

Internal memory. Upload content for instant play

Save and play content without the need for a permanent external player. Your Philips professional display has an internal memory, which allows you to upload media into the display for instant playback. The internal memory also functions as a cache for online streaming.

Technical Specifications

  • Connectivity

    Audio output
    • Audio Left/Right (RCA)
    • 3.5mm jack
    Video input
    • DVI-D
    • HDMI
    • Component (RCA)
    • Composite (RCA)
    • VGA (Analog D-Sub)
    Audio input
    • 3.5 mm jack
    • Audio Left/Right (RCA)
    Other connections
    USB
    External control
    • RJ45
    • RS232C (in/out) 2.5 mm jack
    • IR (in/out) 3.5 mm jack
  • Picture/Display

    Diagonal screen size (metric)
    120.9  cm
    Diagonal screen size (inch)
    47.6  inch
    Aspect ratio
    16:9
    Panel resolution
    1920x1080p
    Pixel pitch
    0.549 x 0.549 mm
    Optimum resolution
    1920 x 1080 @ 60 Hz
    Brightness
    350  cd/m²
    Display colors
    16.7 Million
    Contrast ratio (typical)
    4000:1
    Dynamic contrast ratio
    500,000:1
    Response time (typical)
    8  ms
    Viewing angle (horizontal)
    178  degree
    Viewing angle (vertical)
    178  degree
    DICOM
    Clinical D-image
  • Convenience

    Tiled Matrix
    Up to 15 x 15
    Screen saving functions
    Pixel Shift
    Keyboard control
    • Lockable
    • Hidden
    Signal loop through
    • RS232
    • IR Loopthrough
    Energy saving functions
    Smart Power
    Network controllable
    • RS232
    • RJ45
    • One Wire (HDMI-CEC)
    Memory
    • Internal memory access
    • 8GB eMMC
    Start-up
    • Wake up on LAN
    • Switch on delay
    • Switch on status
    Start-up window
    enable / disable Philips logo
  • Sound

    Built-in speakers
    2 x 10W RMS
  • Power

    Mains power
    100 ~ 240 VAC
    Consumption (On mode)
    115 W (EnergyStar 6.0 test method)
    Standby power consumption
    <0.5W
  • Supported Display Resolution

    Computer formats
    • 640 x 480, 60, 67, 72, 75Hz
    • 800 x 600, 56, 60, 72, 75Hz
    • 1024 x 768, 60Hz
    • 1280 x 768, 60Hz
    • 1280 x 800, 60Hz
    • 1360 x 768, 60Hz
    • 1366 x 768, 60Hz
    • 1440 x 900, 60Hz
    • 1600 x 1200, 60Hz
    • 1920 x 1080, 60Hz
    • 1920 x 1200, 60Hz
    Video formats
    • 480i, 60Hz
    • 480p, 60Hz
    • 576p, 50Hz
    • 576i, 50Hz
    • 720p, 50, 60Hz
    • 1080i, 50, 60Hz
    • 1080p, 50, 60Hz
  • Dimensions

    Set Width
    1081.8  mm
    Product weight
    11.52  kg
    Set Height
    623.4  mm
    Set Depth
    59.9  mm
    Set Width (inch)
    42.59  inch
    Set Height (inch)
    24.54  inch
    Wall Mount
    400 x 400 mm, 200x200 mm, M6
    Set Depth (inch)
    2.36  inch
    Bezel width
    11.9 (TLR) / 14.7 (B) mm
    Product weight (lb)
    25.4  lb
  • Operating conditions

    Temperature range (operation)
    5 ~ 40  °C
    MTBF
    50,000  hour(s)
    Relative humidity
    20 ~ 80  %
    Temperature range (storage)
    -20 ~ 60  °C
  • Multimedia Applications

    USB Playback Video
    • 3G2
    • 3GP
    • ASF
    • ASX
    • AVI
    • DAT
    • F4V
    • FLV
    • M2TS
    • M4V
    • MK3D
    • MKV
    • MOV
    • MP4
    • MPE
    • MPEG
    • MPG
    • MTS
    • QT
    • TRP
    • TS
    • TTS
    • VOB
    • WEBM
    • WMV
    • Xvid
    USB Playback Picture
    • BMP
    • GIF
    • JPEG
    • JPG
    USB Playback Audio
    • AAC
    • AC3
    • AIF
    • AIFF
    • AMR
    • EC3
    • M4A
    • MP3
    • OGA
    • OGG
    • WAV
    • WMA
  • Accessories

    Included accessories
    • AC Power Cord
    • RS232 cable
    • VGA cable
    • Remote Control
    • Batteries for remote control
    • User manual on CD-ROM
    • Quick start guide
  • Miscellaneous

    On-Screen Display Languages
    • English
    • French
    • German
    • Italian
    • Polish
    • Russian
    • Spanish
    • Turkish
    • Simplified Chinese
    • Traditional Chinese
    Warranty
    Global: 3 years
    Regulatory approvals
    • CE
    • CCC
    • UL/cUL
    • C-Tick
    • BSMI
    • CB
    • GOST
    • CECP
    • EPA

What's in the box?

Other items in the box

  • AC Power Cord
  • RS232 cable
  • VGA cable
  • Remote Control
  • Batteries for remote control
  • User manual on CD-ROM
  • Quick start guide
