Other items in the box
- AC Power Cord
- RS232 cable
- Remote Control
- Batteries for remote control
- Quick start guide
Signage Solutions Q-Line Display
32BDL3010Q/00
- -{discount-value}

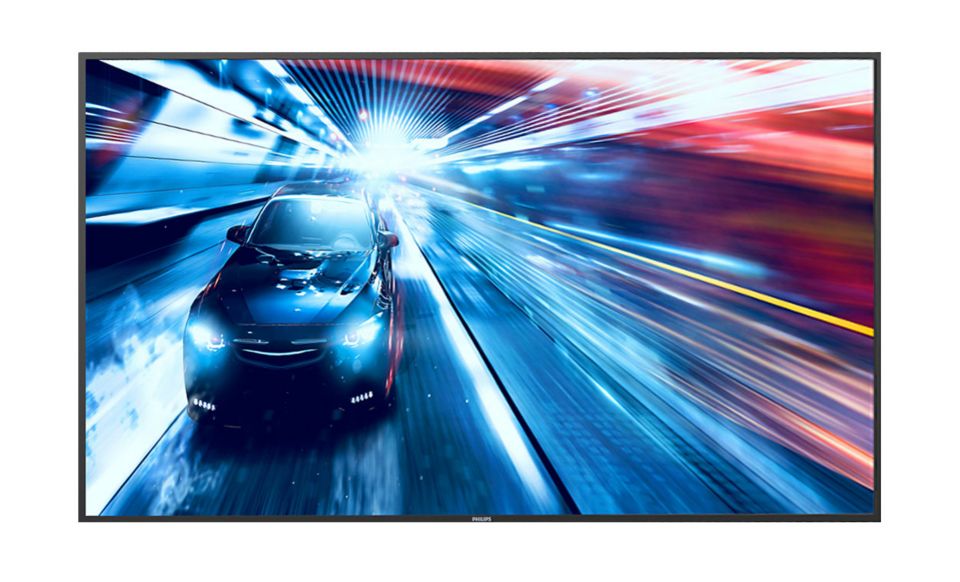

Signage Solutions Q-Line Display
32BDL3010Q/00Intensify your signage experience
Inform and enthrall with a Philips Q-Line Professional Full HD Display. This reliable solution can be up and running as quickly as you need-with no additional hardware.
Unfortunately this product is no longer available
This product qualifies for VAT relief
If you're eligible for VAT relief on medical devices, you can claim it on this product. The VAT amount will be deducted from the price shown above. Look for full details in your shopping basket.
Signage Solutions Q-Line Display
Intensify your signage experience
Inform and enthrall with a Philips Q-Line Professional Full HD Display. This reliable solution can be up and running as quickly as you need-with no additional hardware.
Intensify your signage experience
Inform and enthrall with a Philips Q-Line Professional Full HD Display. This reliable solution can be up and running as quickly as you need-with no additional hardware.
Unfortunately this product is no longer available
This product qualifies for VAT relief
If you're eligible for VAT relief on medical devices, you can claim it on this product. The VAT amount will be deducted from the price shown above. Look for full details in your shopping basket.
Signage Solutions Q-Line Display
Intensify your signage experience
Inform and enthrall with a Philips Q-Line Professional Full HD Display. This reliable solution can be up and running as quickly as you need-with no additional hardware.
Similar products
See all Q-Line Series
Operate, monitor and maintain with CMND & Control
Run your display network over a local (LAN) connection. CMND & Control allows you to perform vital functions like controlling inputs and monitoring display status. Whether you're in charge of one screen or 100.
FailOver ensures content is always playing
From waiting room to meeting room, never show a blank screen. FailOver lets your Philips Professional Display switch automatically between primary and secondary inputs ensuring content keeps playing even if the primary source goes down. Simply set a list of alternate inputs to be sure your business is always on.
Integrated media player. Easily schedule USB content
Easily schedule content to play from USB. Your Philips Professional Display will wake from standby to play the content you want, and then return to standby once playback is done.
Technical Specifications
-
Picture/Display
- Diagonal screen size (metric)
- 80 cm
- Diagonal screen size (inch)
- 31.5 inch
- Panel resolution
- 1920x1080p
- Optimum resolution
- 1920 x 1080 @ 60 Hz
- Brightness
- 350 cd/m²
- Contrast ratio (typical)
- 1200:1
- Dynamic contrast ratio
- 500,000:1
- Response time (typical)
- 8 ms
- Aspect ratio
- 16:9
- Viewing angle (horizontal)
- 178 degree
- Viewing angle (vertical)
- 178 degree
- Pixel pitch
- 0.36375 x 0.36375 mm
- Display colors
- 16.7 Million
- Panel technology
- VA
- Picture enhancement
-
- 3/2 - 2/2 motion pull down
- 3D Combfilter
- 3D MA deinterlacing
- Dynamic contrast enhancement
- Motion compens. deinterlacing
- Progressive scan
-
- Clinical image
- D-Image preset (dicom part 14 compatible)
-
Supported Display Resolution
- Computer formats
-
- 1920 x 1080, 60Hz
- 1680 x 1050, 60Hz
- 1600 x 1200, 60Hz
- 1440 x 900, 60Hz
- 1280 x 1024, 60Hz
- 1280 x 800, 60Hz
- 1280 x 720, 60Hz
- 1152 x 870, 75Hz
- 1024 x 768, 60, 70, 75Hz
- 800 x 600, 56, 60, 72, 75Hz
- 720 x 400, 70Hz
- 640 x 480, 60, 67, 72, 75Hz
-
- Video formats
-
- 1080p, 60Hz
- 1080i, 60Hz
- 1080i, 50Hz
- 720p, 60Hz
- 576p, 50Hz
- 576i, 50Hz
- 480p, 60Hz
- 480i, 60Hz
-
-
Connectivity
- Video input
-
- DVI-I (x 1)
- HDMI (x2)
- USB
- VGA (via DVI)
-
- Audio input
- 3.5 mm jack
- Audio output
- Audio Left/Right (RCA)
- External control
-
- RJ45
- RS232C (in/out) 2.5 mm jack
- IR (in/out) 3.5 mm jack
-
-
Convenience
- Energy saving functions
- Smart Power
- Tiled Matrix
- Up to 15 x 15
- Start-up
-
- Switch on delay
- Switch on status
- Boot on source
-
- Start-up window
- enable / disable Philips logo
- Keyboard control
-
- Lockable
- Hidden
-
- Network controllable
-
- RS232
- RJ45
-
- Signal loop through
-
- RS232
- IR Loopthrough
-
- Placement
- Landscape
- Remote control signal
- Lockable
-
Dimensions
- Bezel width
- 11.9 (TLR) / 17.2 (B) mm
- Set Width
- 726.5 mm
- Set Height
- 425.4 mm
- Set Depth
- 63.6 mm
- Set Width (inch)
- 28.6 inch
- Set Height (inch)
- 16.75 inch
- Set Depth (inch)
- 2.5 inch
- Wall Mount
- 100mm x100mm, 200mm x 200mm ,M4
- Product weight
- 5.2 kg
- Product weight (lb)
- 11.47 lb
-
Operating conditions
- Temperature range (operation)
- 5 ~ 40 °C
- Temperature range (storage)
- -20 ~ 60 °C
- MTBF
- 50,000 hour(s)
- Altitude
- 0 ~ 3000 m
- Humidity range (operation)[RH]
- 20 ~ 80% RH (No condensation)
- Humidity range (storage) [RH]
- 5 ~ 95% RH (No condensation)
-
Power
- Consumption (On mode)
- 50 W
- Mains power
- 100 - 240V~, 50-60Hz, 1.5A
- Standby power consumption
- <0.5 W
- Consumption (Max)
- 75 W
- Consumption (Typical)
- 50 W
- Power Saving Features
- Smart Power
- Energy Label Class
- G
-
Sound
- Built-in speakers
- 2 x 10W RMS
-
Multimedia Applications
- USB Playback Video
-
- MPEG
- H.264
- JPEG
-
- USB Playback Picture
-
- BMP
- JPEG
- PNG
-
- USB Playback Audio
-
- AAC
- WMA
- HEAAC
- MPEG
-
-
Accessories
- Included accessories
-
- AC Power Cord
- RS232 cable
- Remote Control
- Batteries for remote control
- Quick start guide
-
- Included Accessories
-
- IR sensor cable (1.8 m) (x1)
- RS232 daisy-chain cable
- USB Cover and screw x1
-
- Stand
- BM02541/BM05911(optional)
-
Miscellaneous
- Warranty
- 3 year warranty
- On-Screen Display Languages
-
- English
- French
- German
- Italian
- Polish
- Turkish
- Russian
- Simplified Chinese
- Spanish
- Traditional Chinese
- Arabic
- Japanese
-
- Regulatory approvals
-
- CB
- CE
- FCC, Class B
-
